W
370
L
280
H
65
kg
4.20
Products
Search by Vehicle Component
Search by Vehicle Size
Search by Part Number
QUH-45
467000 JAN 4582281281157
Under Hook
UNDER HOOK
I. Auto Body Tools
Unlike conventional fixtures, there is no need to remove aerodynamic body parts or repair jaw marks.
Product Overview

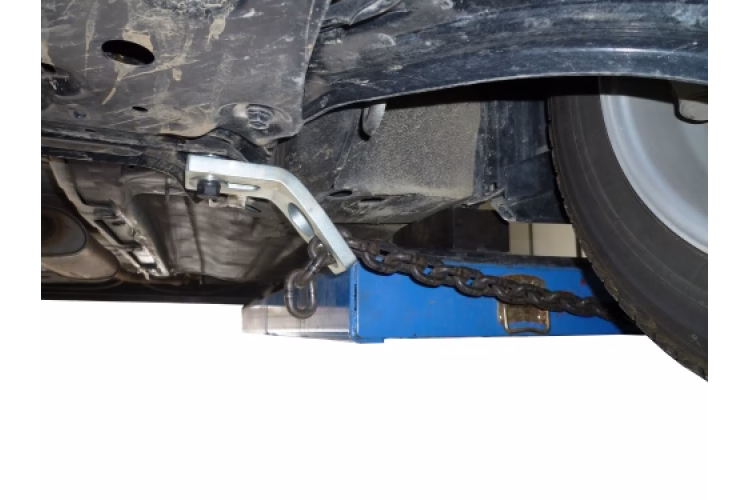

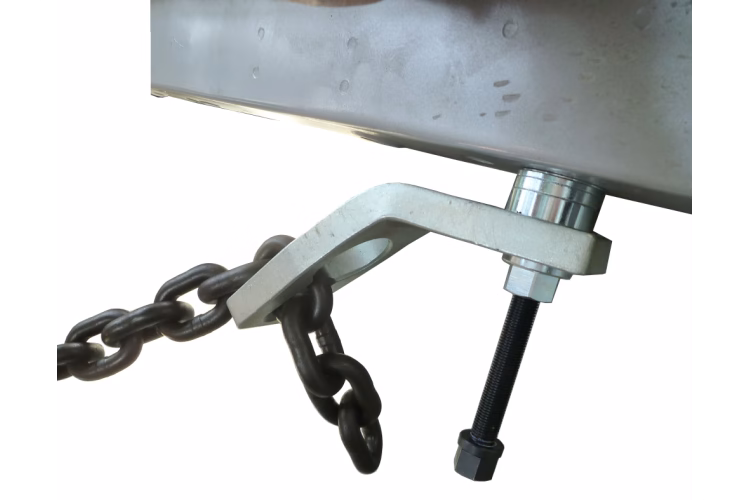

●A new type of simple vehicle holding device that uses existing bolt holes.

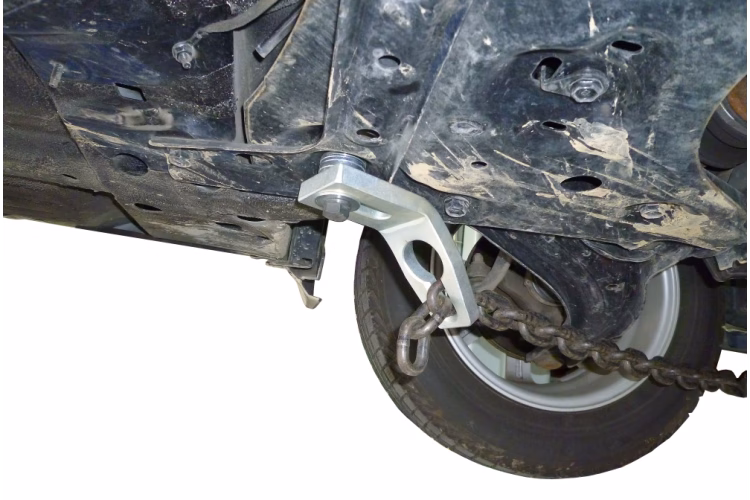

●Uses structurally strong bolt holes in members, suspension components, and similar areas.
●Aligning the angle with the pulling direction allows precise pulling at the target point.

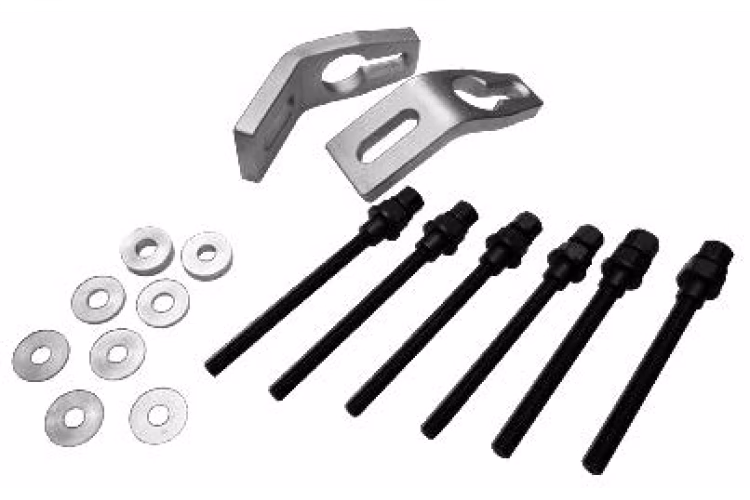

Components & Accessories: Plates×2, M14 P1.5 bolts×2, M12 P1.5 bolts×2, M12 P1.25 bolts×2, matching nuts 2 each, spacers No.1 (1mm)×2, No.2 (2.5mm)×2, No.3 (5mm)×2, No.4 (10mm)×2.
Case Dimensions/Weight
