MRN-1260
494000 JAN 4582281281454
Multi Repair Tool
MULTI REPAIR TOOL
I. Auto Body Tools

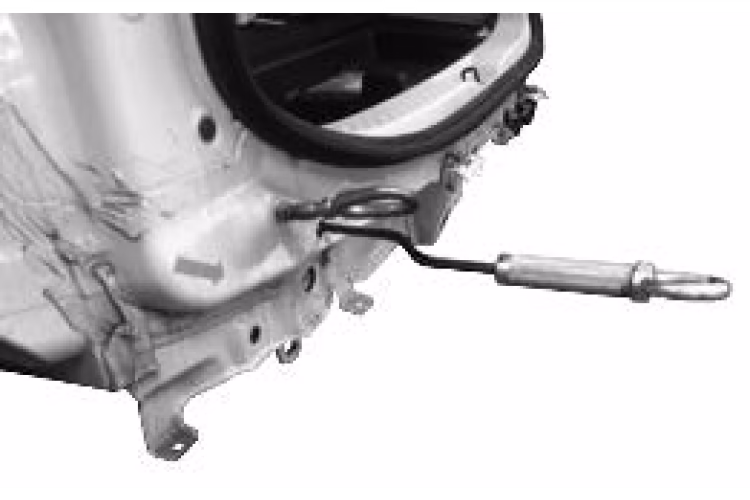

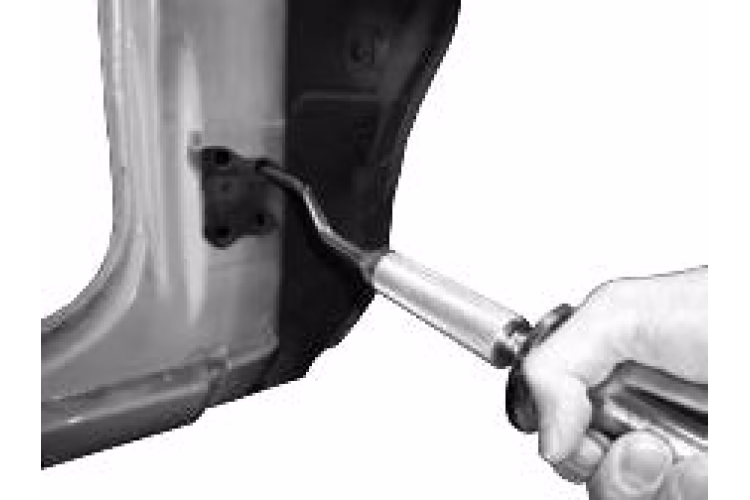

A tool that passes through front and rear fender mounting holes or rear body panel holes for pulling and pushing work.
Product Overview
●Allows pulling and pushing from inside enclosed sections through existing holes.
●Repairs can be made with minimal disassembly and follow-up work such as filling and painting, saving time and effort.

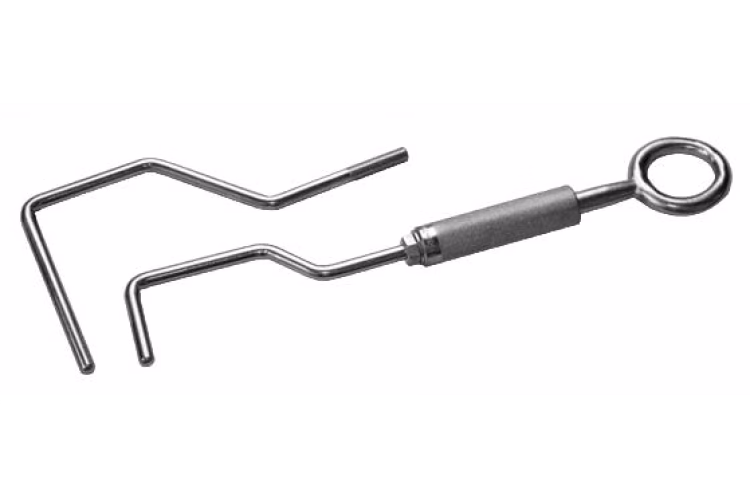

●Includes 2 interchangeable hook sizes, large and small, to suit the location and application.
●Remove the ring hook and use the separately sold slide shaft and hammer for straight pulling.

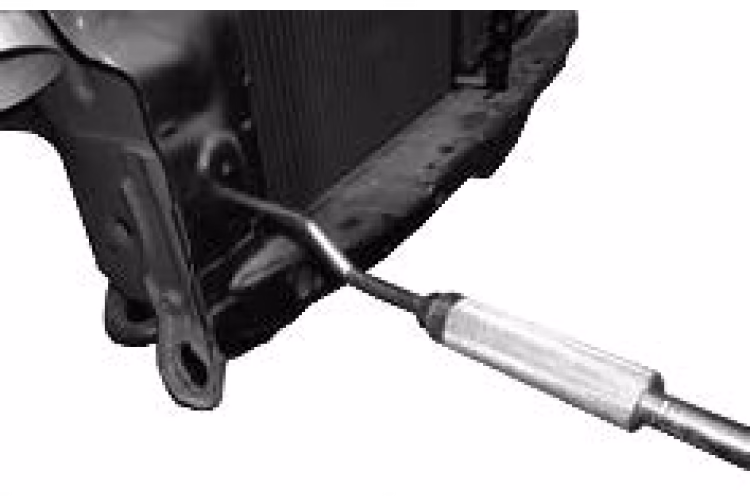

●With the separately sold MRN-1260-30 Push Ram Joint, it can also be used for pushing with a hydraulic ram. Use it for repairs from inside the trunk or engine compartment.
Capacity & Range: Maximum working load: S hook 7,840N, L hook 4,900N. Varies with operating conditions.
Material: Hook: hardened molybdenum steel.
Components & Accessories: Main body (S)×1, main body (L)×1, washer & nut×1, grip×1, pull bolt×1.
Case Dimensions/Weight
