LW-3000
515000 JAN 4582281275323
Lower Ball Joint Nut Wrench
JOINT REMOVER
B. Suspension & Steering

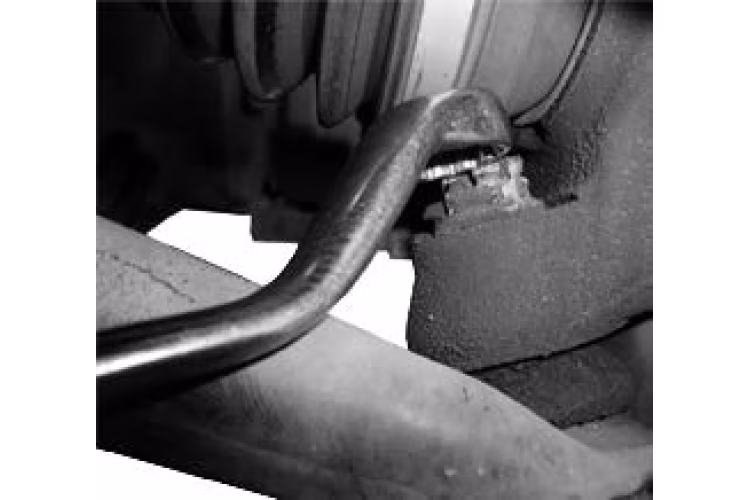

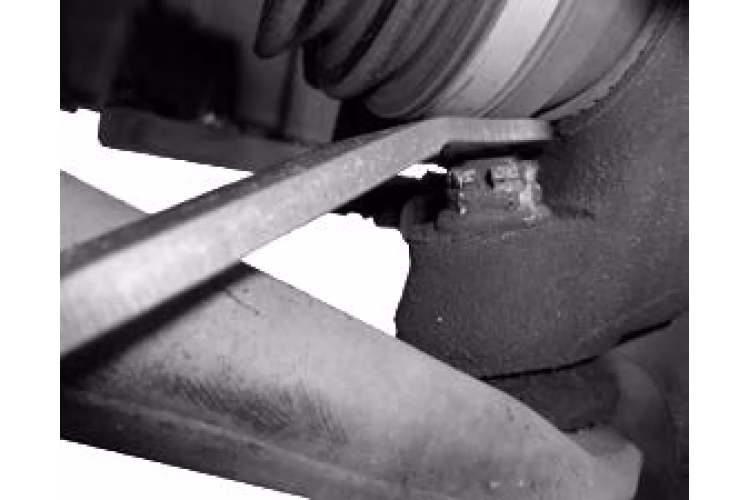

A wrench made as thin as possible specifically for vehicles with very limited clearance around the lower ball joint nut, a configuration common on Toyota vehicles.
Product Overview
●A special １-piece box-end wrench with ６-point and １２-point ends in the same size!
●Ideal for vehicles such as the Prius and １BOX vans where clearance is too tight for a conventional wrench!

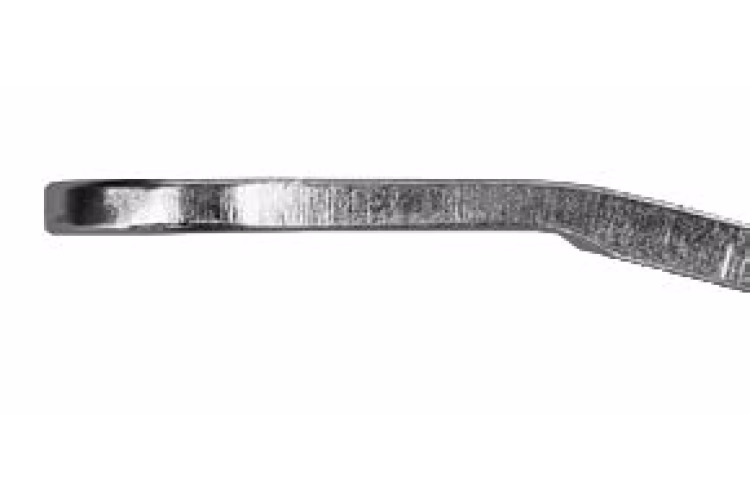

●３００㎜ overall length and １５-degree offset improve efficiency!
Capacity & Range: 2-piece set, 17mm and 19mm. Maximum torque: 160N/m each.
Material: SCM steel.

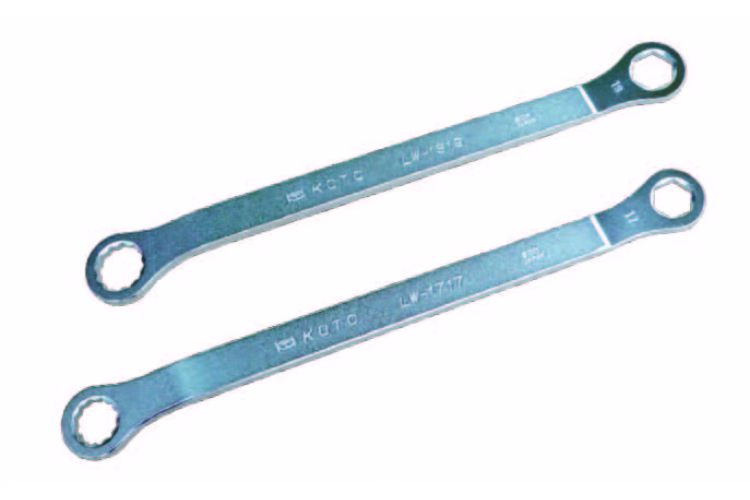

Components & Accessories: LW-1717×1, LW-1919×1.
