Products
Search by Vehicle Component
Search by Vehicle Size
Search by Part Number
KPF-247
166300 JAN 4582281270687

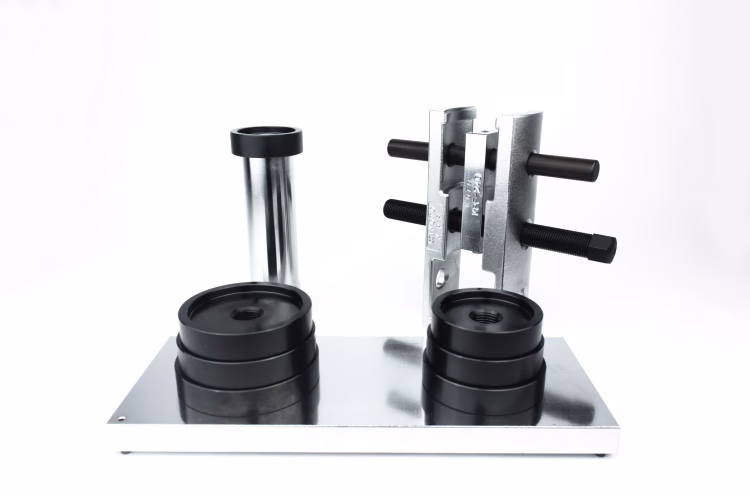

Front Hub & Bearing Push Installer〈Hydraulic Press Fixture〉
FRONT HUB & BEARING PUSH INSERTER (HYDRAULIC PRESS JIG)
A. Axle
A convenient tool set for replacing front steering knuckle bearings and assembling hubs and knuckles on front-wheel-drive vehicles using a hydraulic press.
Product Overview
●The width is freely adjustable.
●Can be reversed to use the narrow or thick surface, or to grip with the groove, to suit the steering knuckle shape.
Applicable vehicles: Standard front-wheel-drive vehicles (front steering knuckle)
Weight: 9.351kg. Capacity & Range: Holder operating range D＝φ55～160mm.

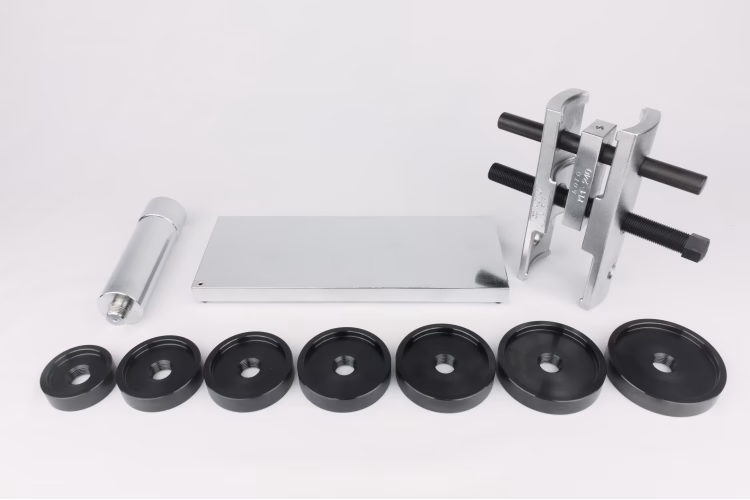

Components & Accessories: Push holder ASSY, plate, push bar, bearing attachments φ50・60・64・68・72・76・80.
Case Dimensions/Weight
