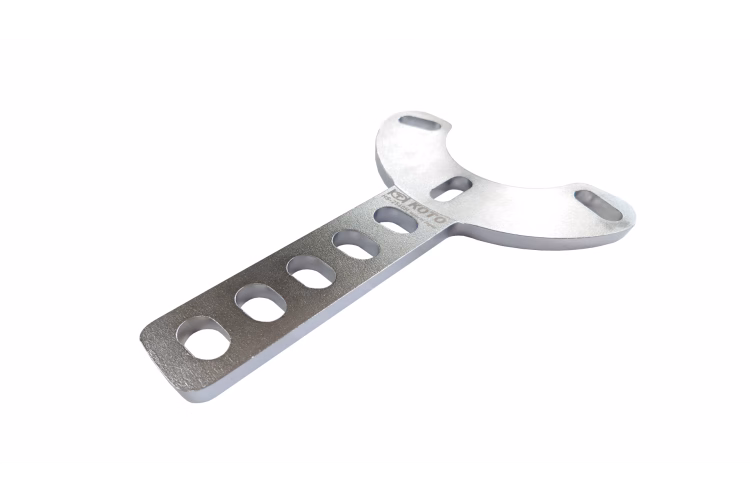

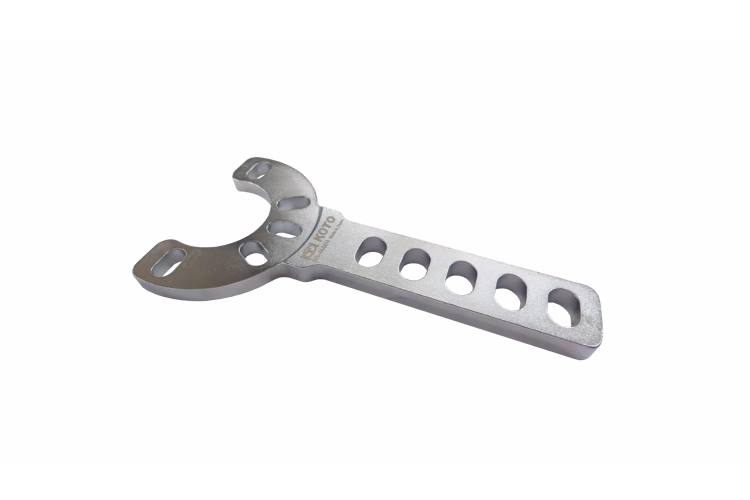

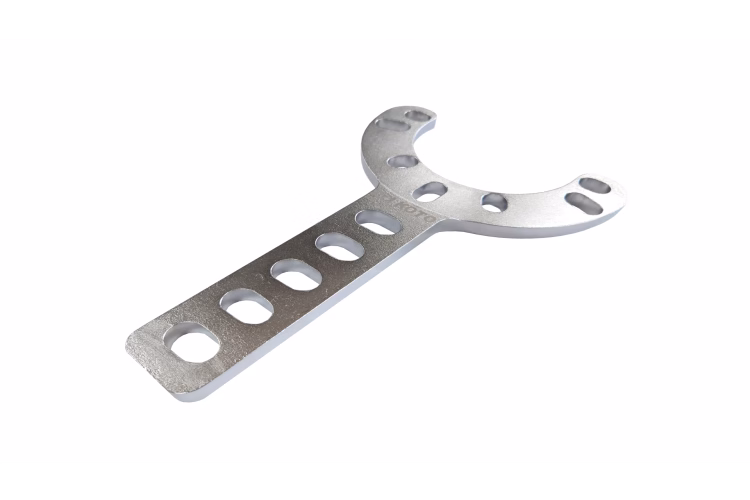

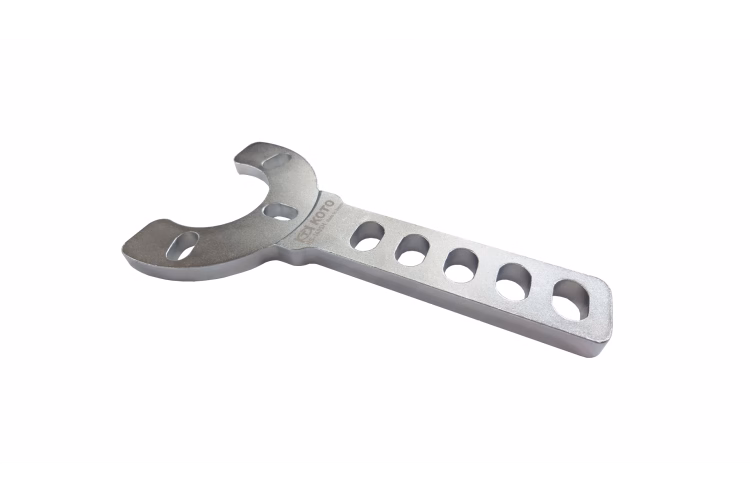

HS Series Optional Holders

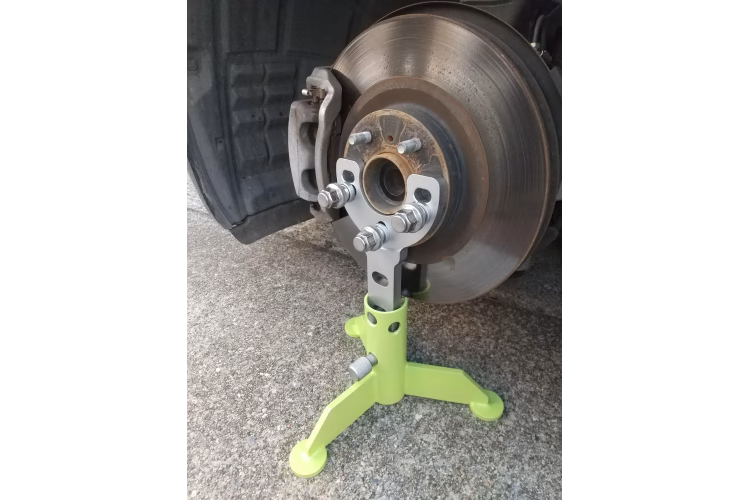

An optional hub holder for the HS-2840.

・HS-1316H (HiAce, Caravan, Hummer, Hilux, Land Cruiser, Bighorn, Mercedes-Benz Sprinter, Daihatsu Rocky, Mazda AZ, Jimny, TownAce, VW vehicles, etc.)

PCD 140～160 (5-lug), 130～140 (6-lug)

Hub diameter: up to Φ110㎜

Thread diameter: up to 14㎜; 5 or 6 holes

・HS-1405H (from Subaru and Nissan vehicles to large Japanese and imported sedans such as the LS)

PCD　100～121

Hub diameter: up to Φ75㎜

Thread diameter: up to Φ14㎜; 5 holes

・HS-1446H (for older 4-lug Japanese vehicles, R-series MINI and similar vehicles, as well as 6-lug pickup trucks)

PCD　100～121

Hub diameter: up to Φ75㎜

Thread diameter: up to Φ14㎜; 4 or 6 holes

・HS-2560H (TownAce, Jimny, Land Cruiser, Audi Q7, Porsche 718, Cayenne, 911, Nissan MV400, VW vehicles, Mercedes-Benz G-Class, etc.)

PCD　125～160

Hub diameter: up to Φ95

Thread diameter: up to Φ14㎜; 5 holes
